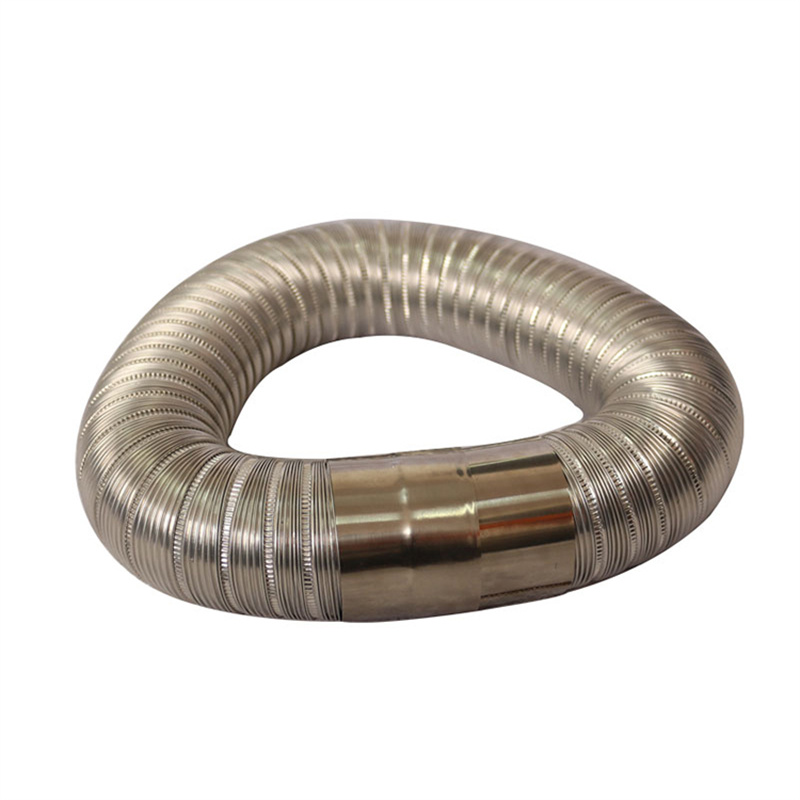

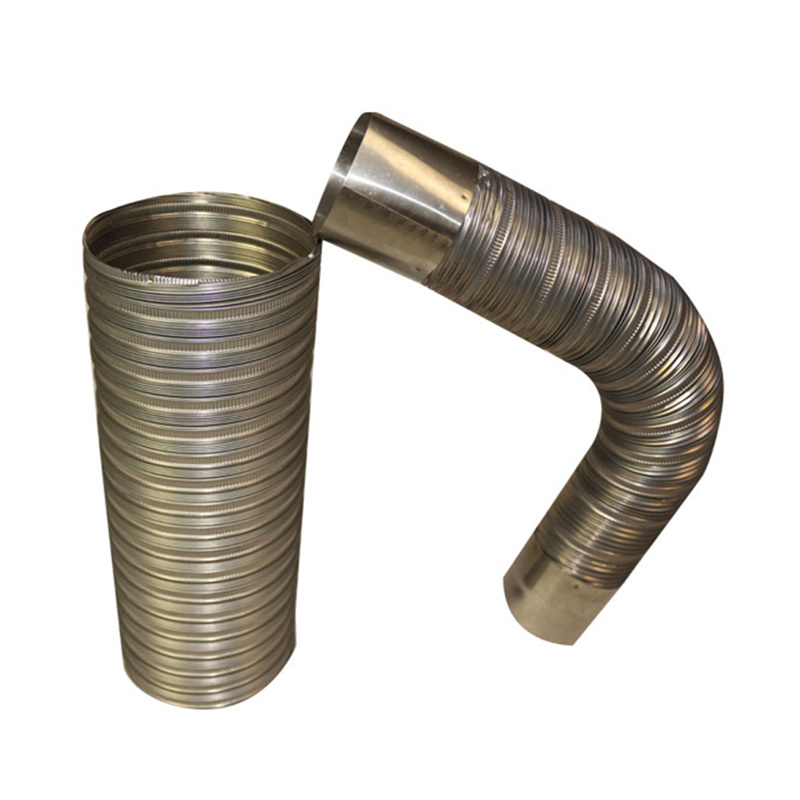

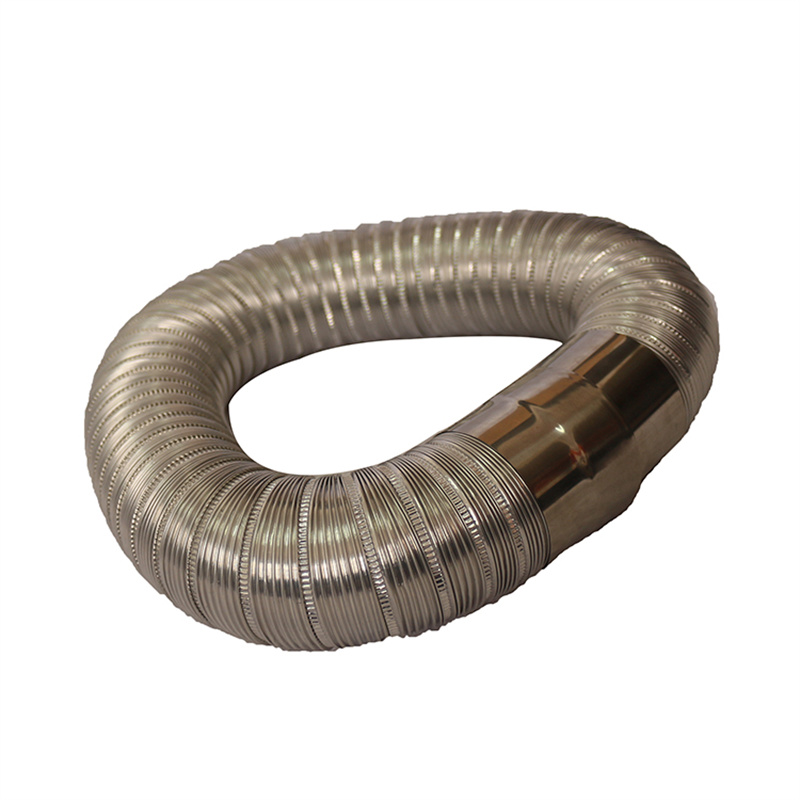

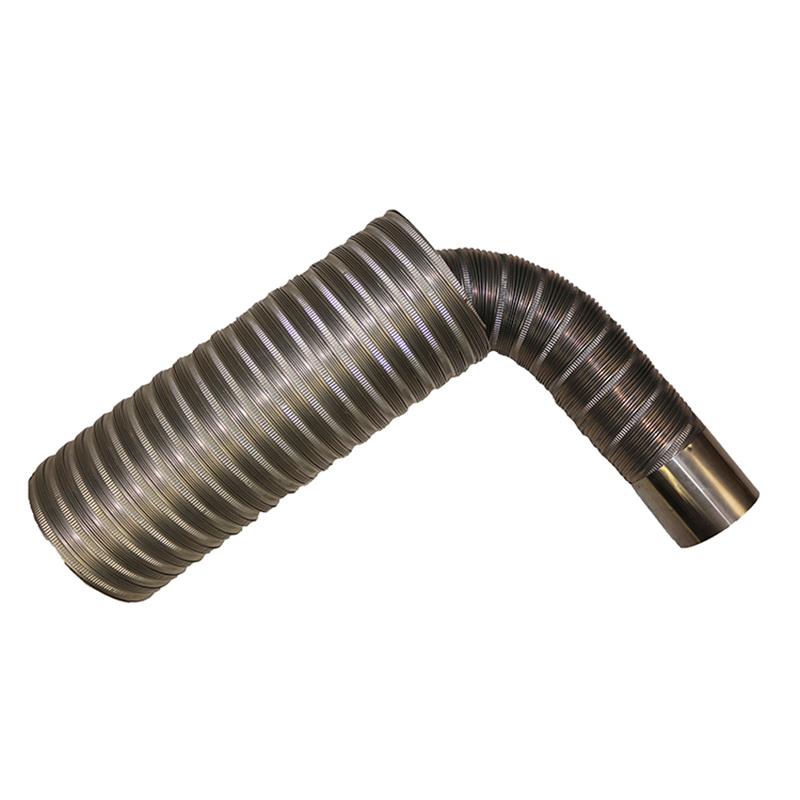

Semi-rigid Stainless Steel Flexible Duct
不锈钢波纹管
|
Product Code
|
XY-302
|
产品编码
|
XY-302
|
|
Construction
|
Stainless steel 304/316/316L
|
材料
|
不锈钢304/316/316L
|
|
AvailableDiameter
|
45mm-300mm
(1.8"-12")
|
直径范围
|
45mm-300mm
(1.8"-12")
|
|
StandardLength
|
4m(Max)
|
标准长度
|
4m(Max)
|
|
Thickness
|
0.1mm
|
厚度
|
0.1mm
|
|
Fire Resistance
|
Class A2(Max)
|
防火等级
|
A2级，难燃
|
|
Goffer Numbers
|
4/7
|
螺纹数
|
4/7
|
|
CompressRatio
|
Can not be compressed
|
压缩比
|
不可压缩
|
|
Temperature Range
|
-30℃/+400℃
|
温度范围
|
-30℃/+400℃
|
|
Operating Pressure
|
3000Pa
|
最大压力
|
3000Pa
|
|
Maximum Air Velocity
|
30m/s
|
最大风速
|
30m/s
|
不锈钢波纹管是由厚度为0.1mm的不锈钢304材质直接压制而成，可塑性强，适用于热水器、油烟机等排污排风用。
Semi-rigid stainless steel flexible duct is made by stainless steel 304 material, thickness is 0.1mm, it is easy to install. Suitable for range hoods,laundries, dryer vent, toilets, bathrooms.
