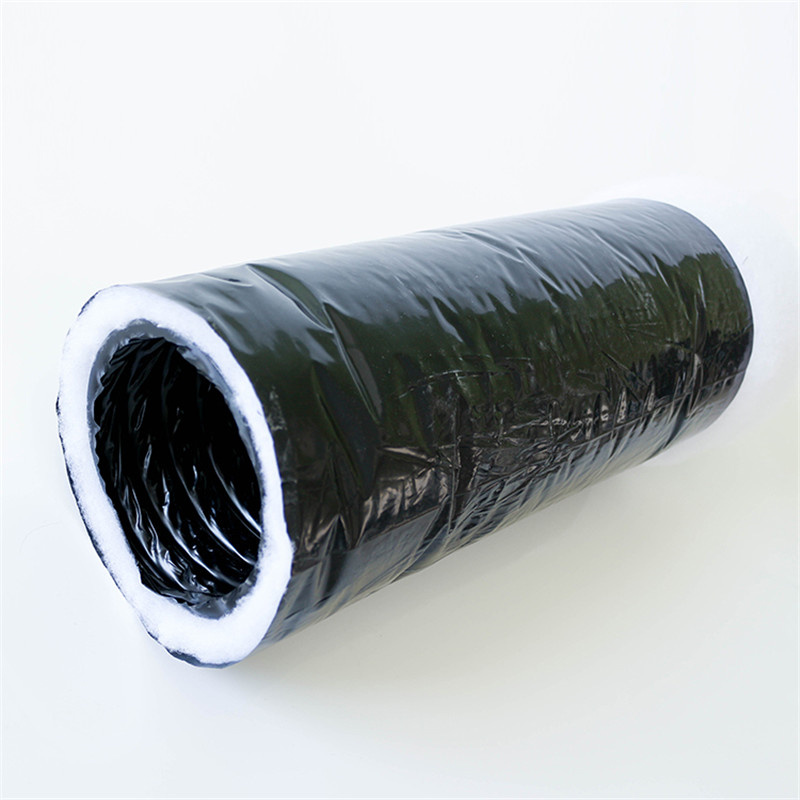

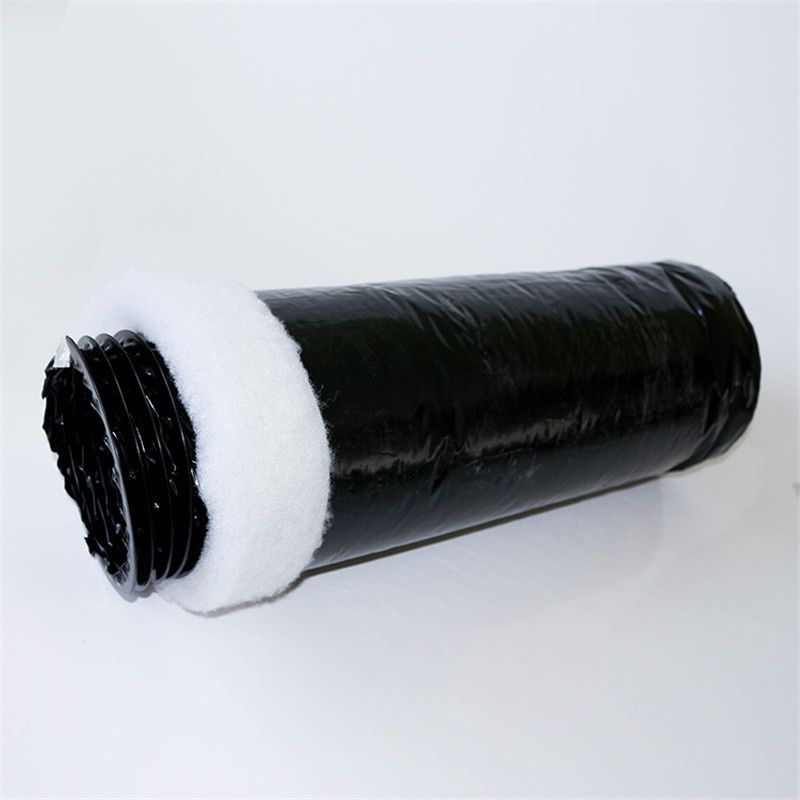

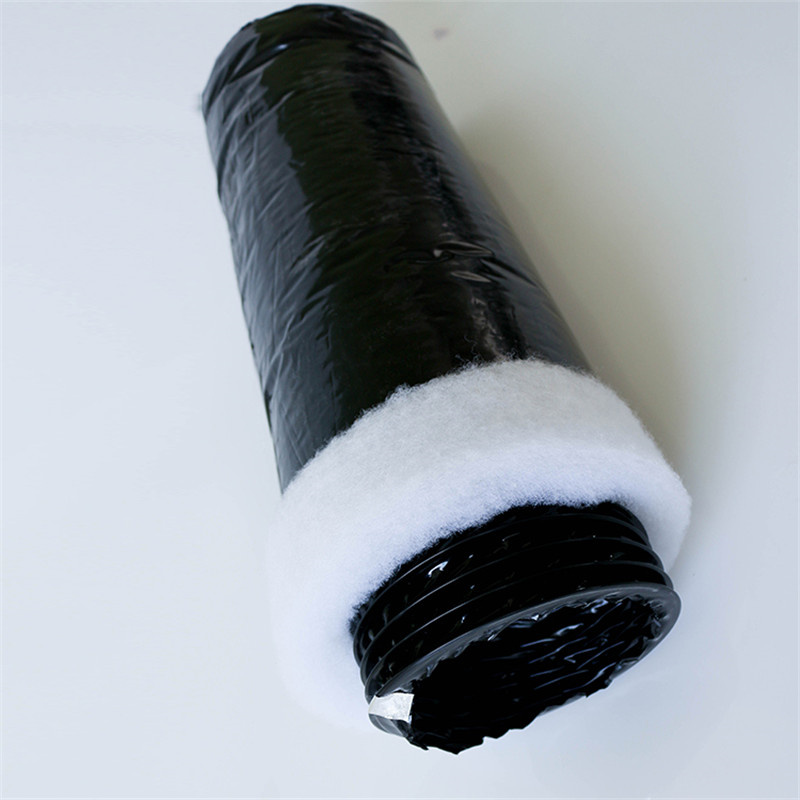

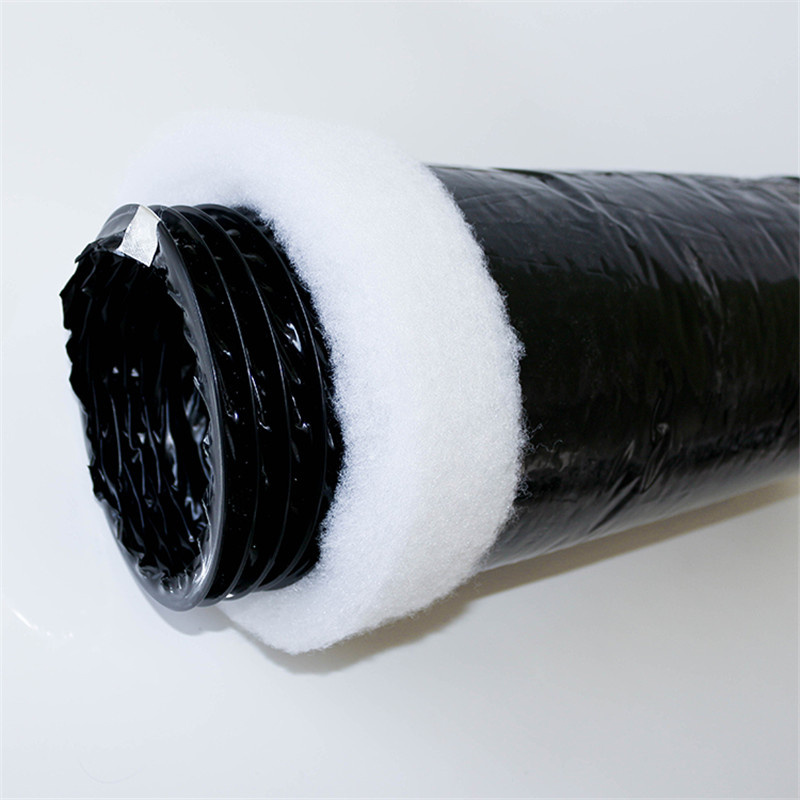

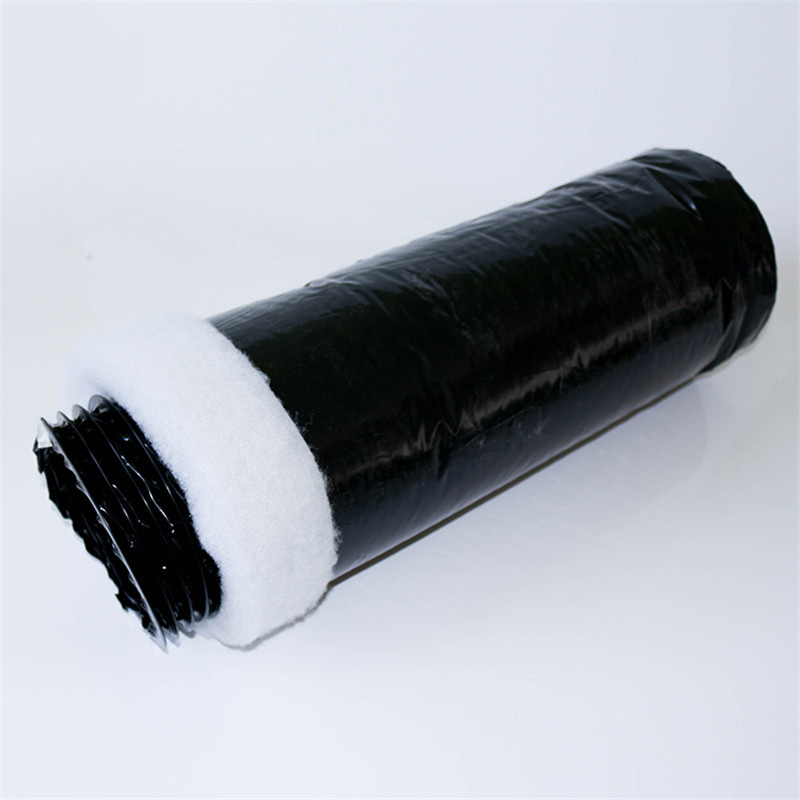

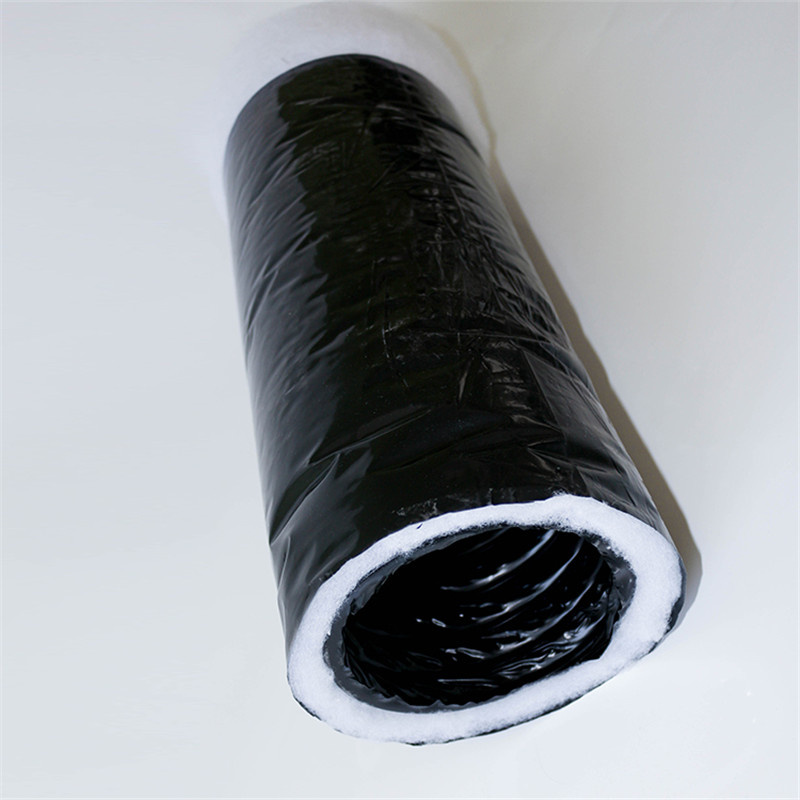

Polyester Insulation Flexible Duct
|
Product Code
|
XY-607
|
|
Construction
(From outside to inside)
|
Sleeve
|
PE
|
|
Polyester
|
Gram Weight
|
100g/m2-750g/m2
|
|
Thickness
|
25mm / 30mm
|
|
Inner Duct
|
Material
|
PVC
|
|
Diameter
|
50mm-650mm
(2"-25")
|
|
Carbon Steel Wire Diameter
|
0.6mm-2.5mm
|
|
Length
|
10m(Max)
|
|
Thermal Insulation
|
R0.4-R3.0
|
|
Fire Resistance
|
ClassA2(Max)
|
|
CompressRatio
|
1: 10
|
|
Temperature Range
|
-30℃/+150℃
|
|
Operating Pressure
|
3000Pa
|
|
Maximum Air Velocity
|
30m/s
|
无纺棉保温软管（PVC内管+PE外套）
|
产品编码
|
XY-607
|
|
构成（由外到内）
|
外套
|
PE
|
|
无纺棉
|
克重
|
100g/m2-750g/m2
|
|
厚度
|
25mm / 30mm
|
|
内管
|
材质
|
PVC
|
|
口径
|
50mm-650mm
(2"-25")
|
|
钢丝直径范围
|
0.9mm-1.3mm
|
|
长度
|
10m(Max)
|
|
保温系数
|
R0.4-R3.0
|
|
防火等级
|
A2级，难燃
|
|
压缩比
|
10 : 1
|
|
耐温范围
|
-30℃/+150℃
|
|
最大压力
|
3000Pa
|
|
最大风速
|
30m/s
|
