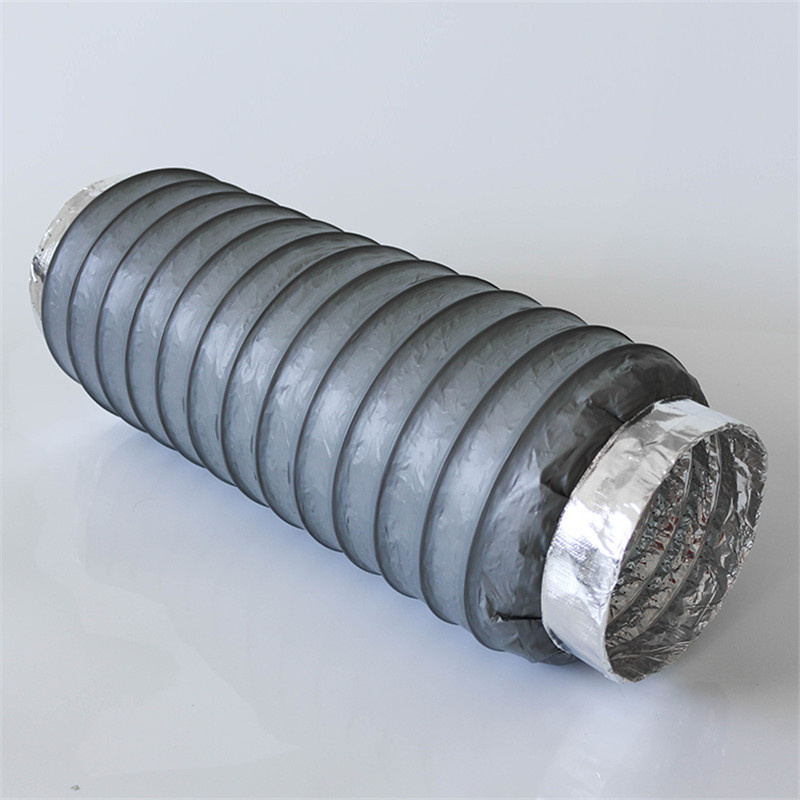

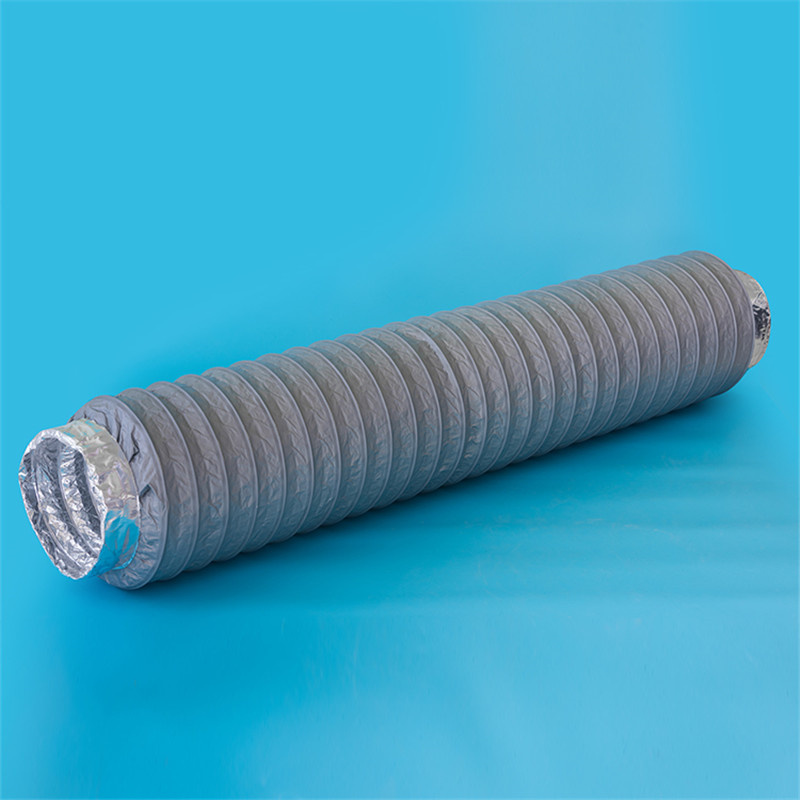

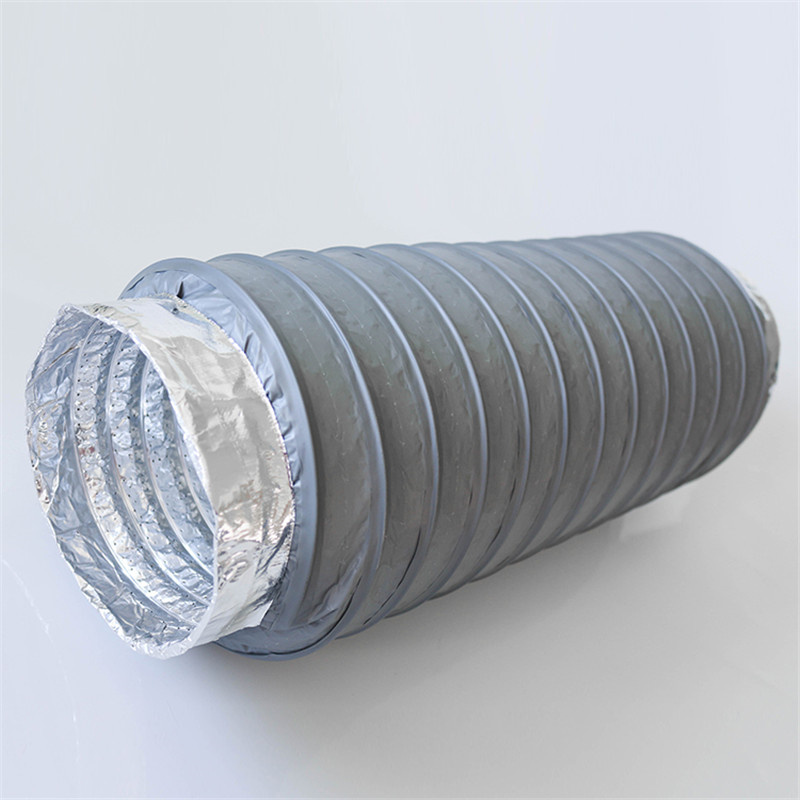

Product Code

XY-702

Construction

(From outside to inside)

Sleeve

Combi PVC Duct

Fiberglass

Density

16kg/m3-32kg/m3

Thickness

25mm/30mm

Plastic Bag

PET

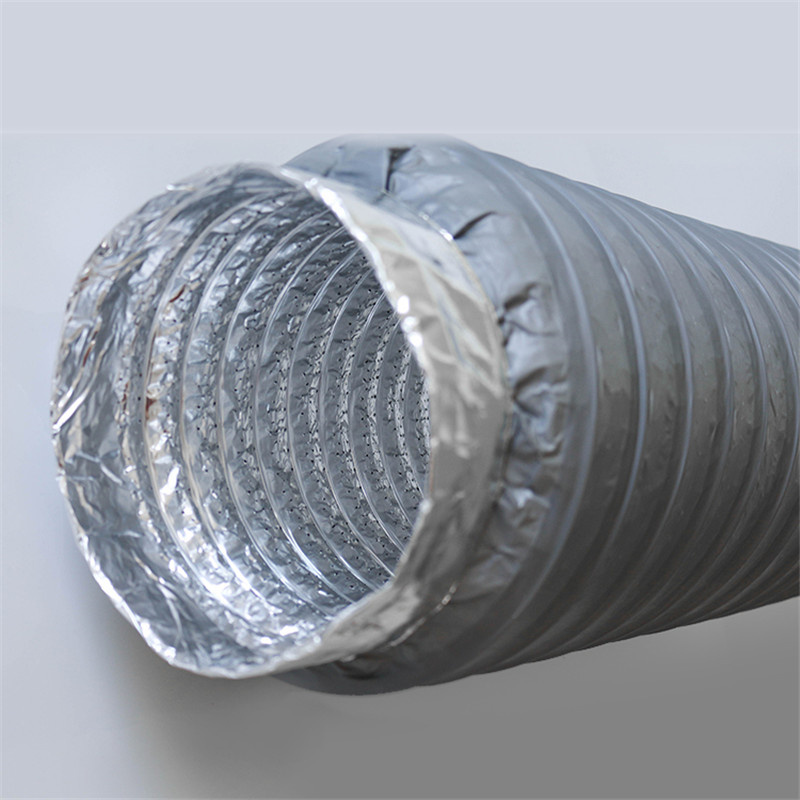

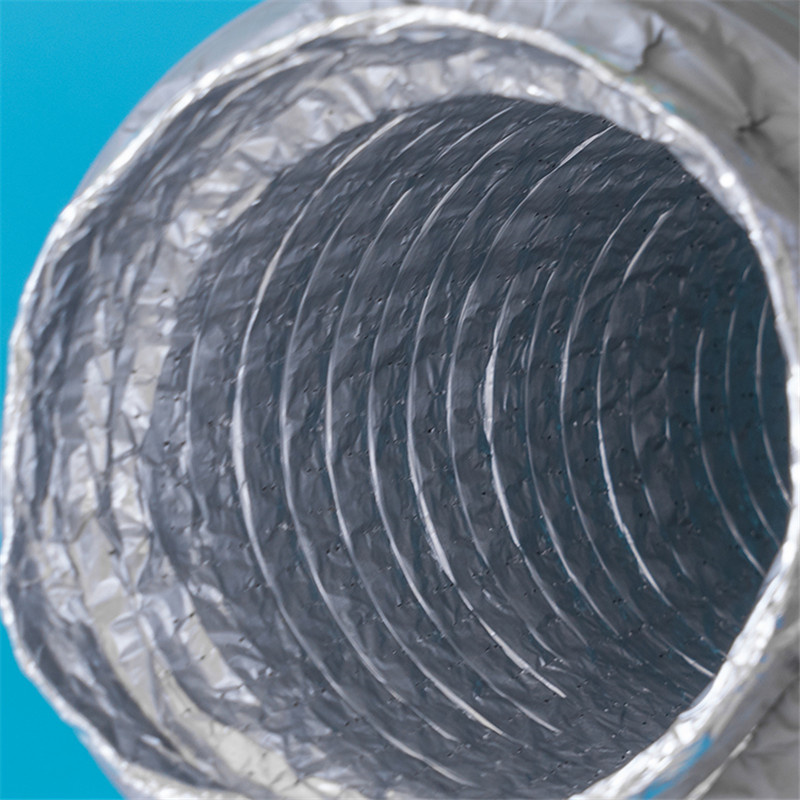

Inner Duct

(With hole)

Material

Single/Double Layer Aluminum Flexible Duct

Diameter

50mm-650mm

(2"-25")

Carbon Steel Wire Diameter

0.6mm-2.5mm

Length

10m(Max)

Fire Resistance

ClassA2(Max)

CompressRatio

1:8

Temperature Range

-30℃/+150℃

Operating Pressure

3000Pa

Maximum Air Velocity

30m/s

产品编号

XY-702

构成（由内到外）

外套

复合PVC管

玻璃棉

密度

16kg/m3-32kg/m3

厚度

25mm/30mm

塑料膜

PET

内管(带孔)

材质

铝箔单管/复合PVC管

内径范围

50mm-650mm

(2"-25")

碳素钢丝直径

0.6mm-2.5mm

标准长度

1.5m(Max)

阻燃性能

A2级，难燃

压缩比例

1:8

温度范围

-30℃/+150℃

最大压力

3000Pa

最大风速

30m/s
