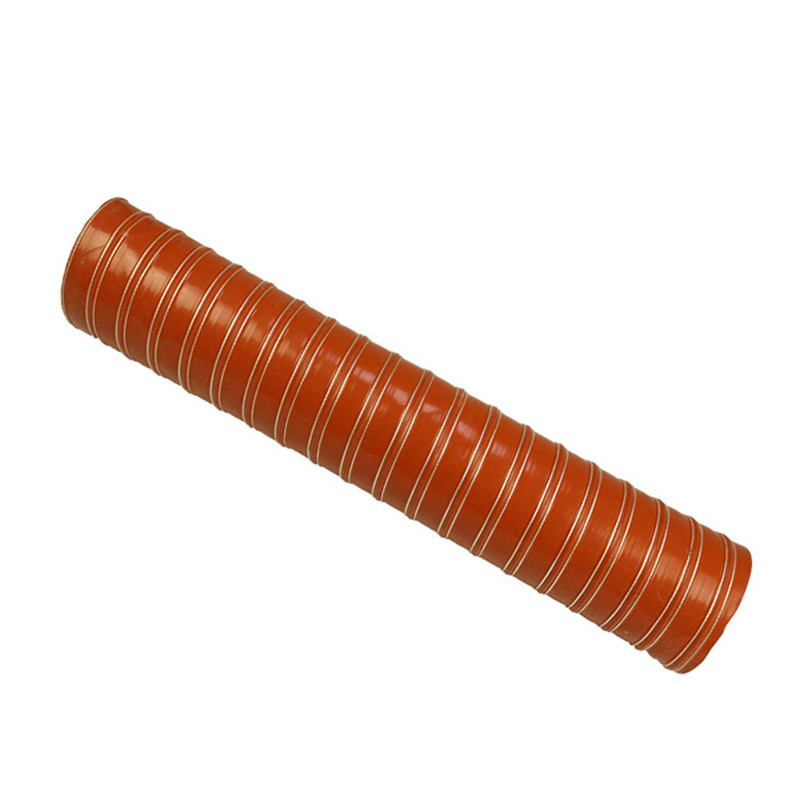

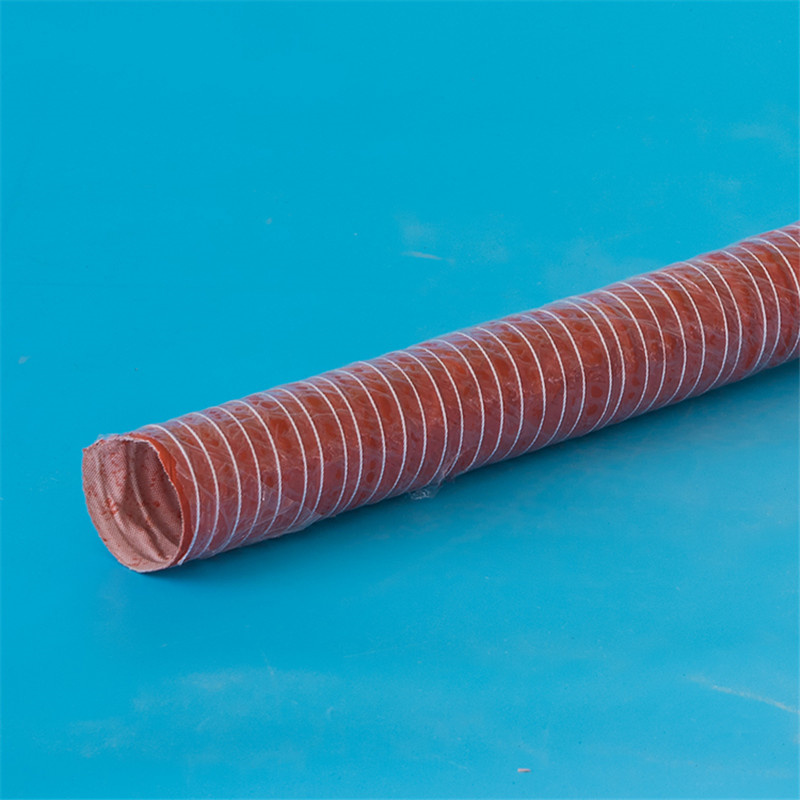

Silicone Duct
硅胶管
|
Product Code |
XY-802 |
|
Construction (From outside to inside) |
Glass Fiber Cord +Silicon Coated+ Glass Fabric+ Steel Wire+ Glass Fabric |
|
Color |
Red/black |
|
InnerDiameter |
40mm-300mm (1.5"-12") |
|
Thickness |
0.6mm |
|
Length |
4m(Max) |
|
Helix Spacing |
15mm,16mm,18mm,19mm(customized) |
|
Bending Property |
Good |
|
Helix Wire Diameter |
1.2mm,1.5mm |
|
Fiber Braiding Wire Thickness |
1mm |
|
Fire Resistance |
Non-Flammable |
|
Compression Ratio |
Cannot Been Compressed |
|
Temperature Range |
-70℃/+280℃(short time to +310℃) |
|
Operating Pressure |
3000Pa |
|
Maximum Air Velocity |
30m/s |
|
产品编码 |
XY-802 |
|
材质 |
玻璃纤维绳+硅胶涂层玻纤布+ 钢丝 |
|
颜色 |
红色 |
|
内径范围 |
40mm-300mm (1.5"-12") |
|
管壁厚度 |
0.6mm |
|
标准长度 |
4m(Max) |
|
钢丝间距 |
15mm,16mm,18mm,19mm(按要求定制) |
|
弯曲性能 |
Good |
|
钢丝直径 |
1.2mm,1.5mm |
|
玻璃纤维绳直径 |
1mm |
|
阻燃性能 |
不可燃 |
|
压缩比例 |
不可压缩 |
|
温度范围 |
-70℃/+280℃(短期可达 +310℃) |
|
最大压力 |
3000Pa |
|
最大风速 |
30m/s |
