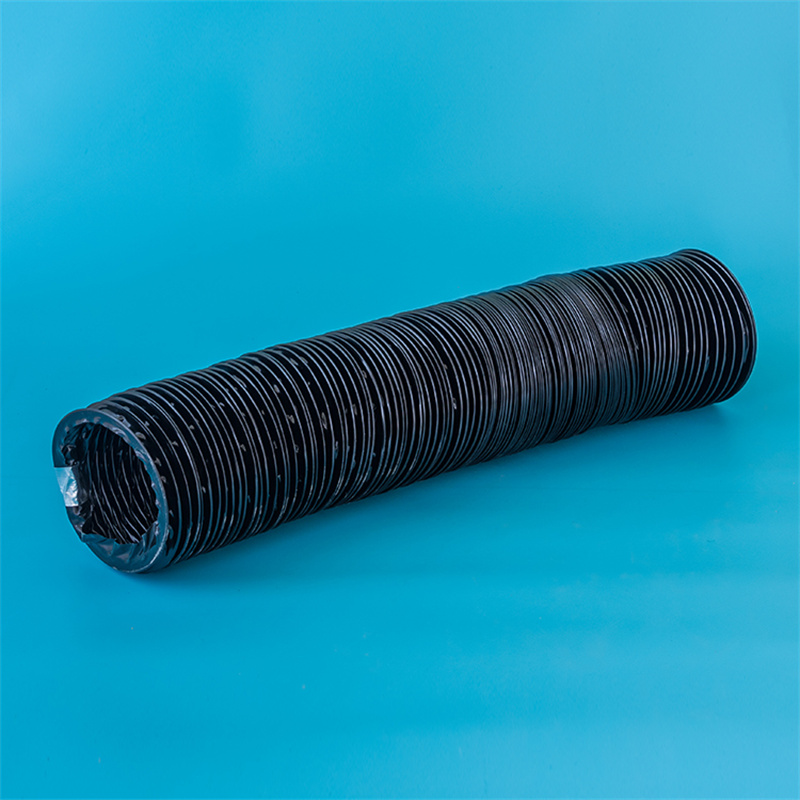

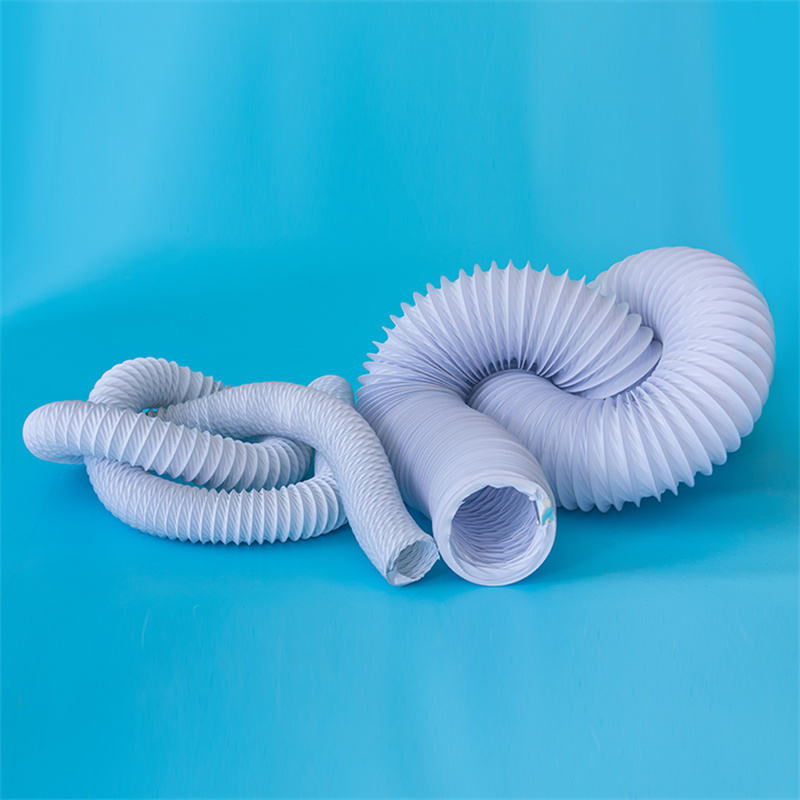

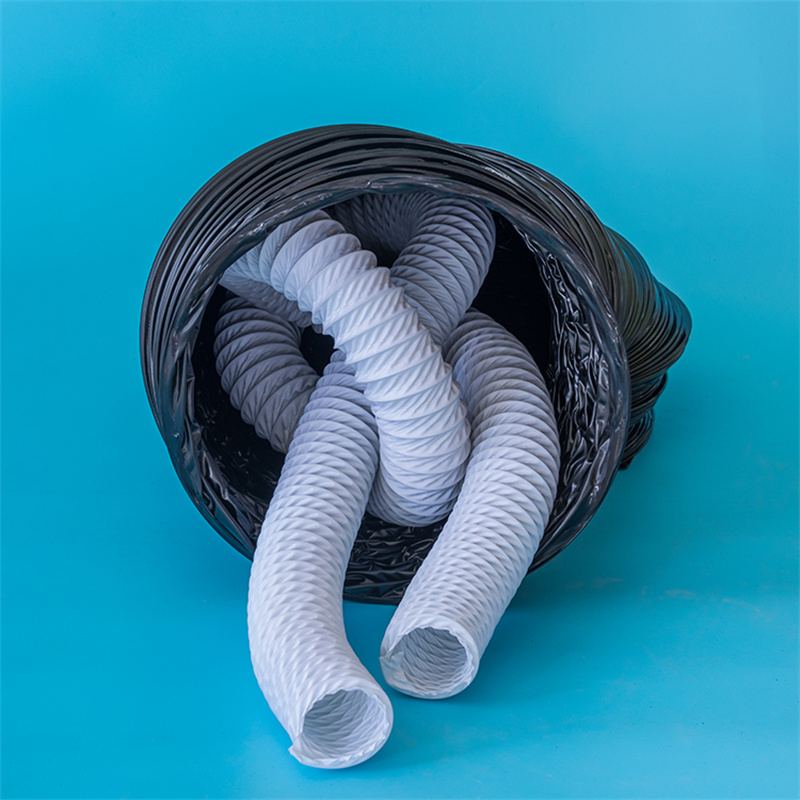

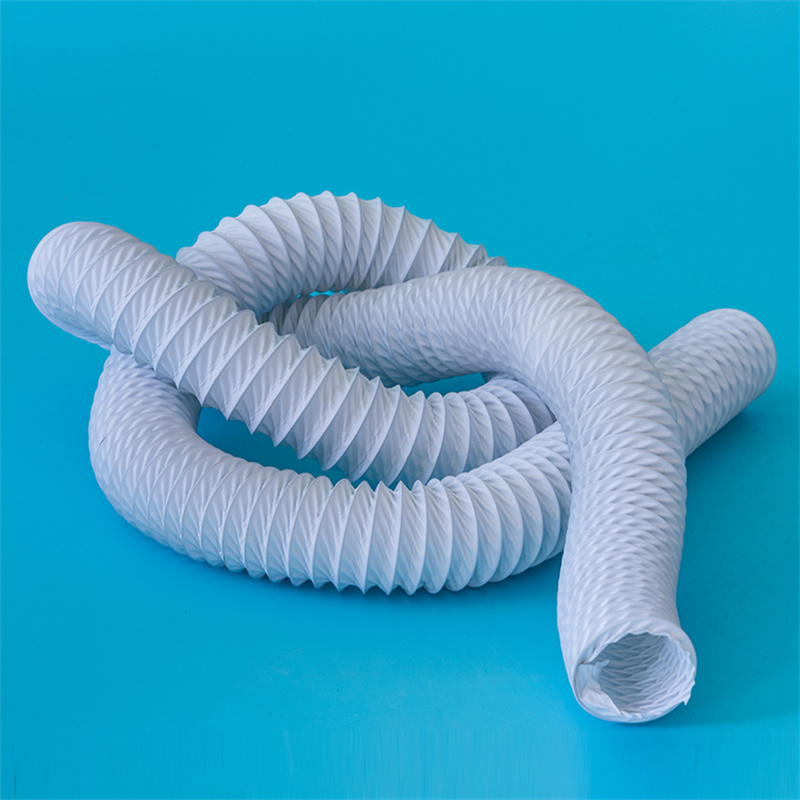

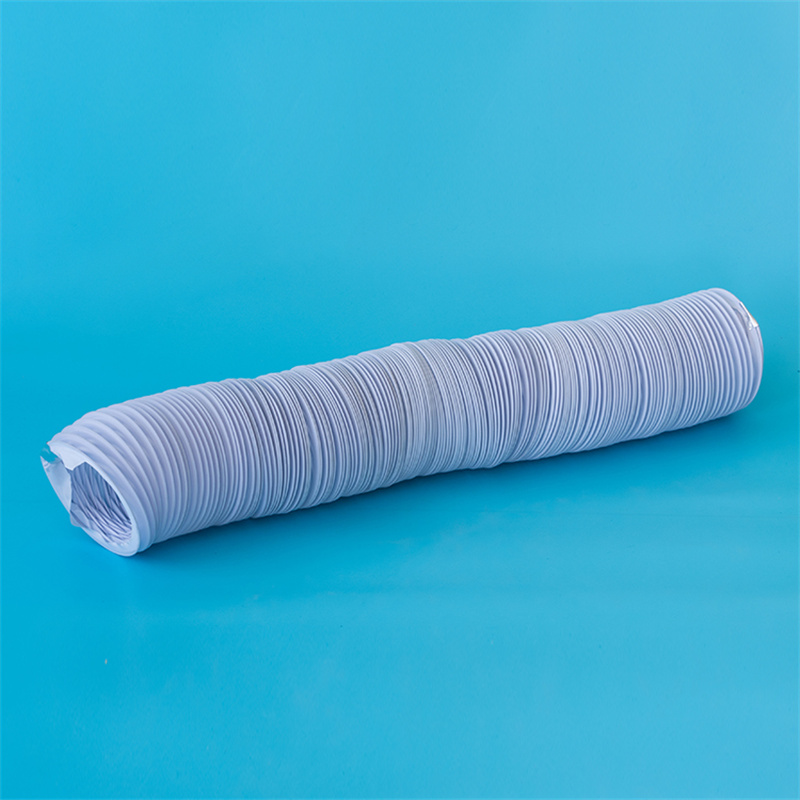

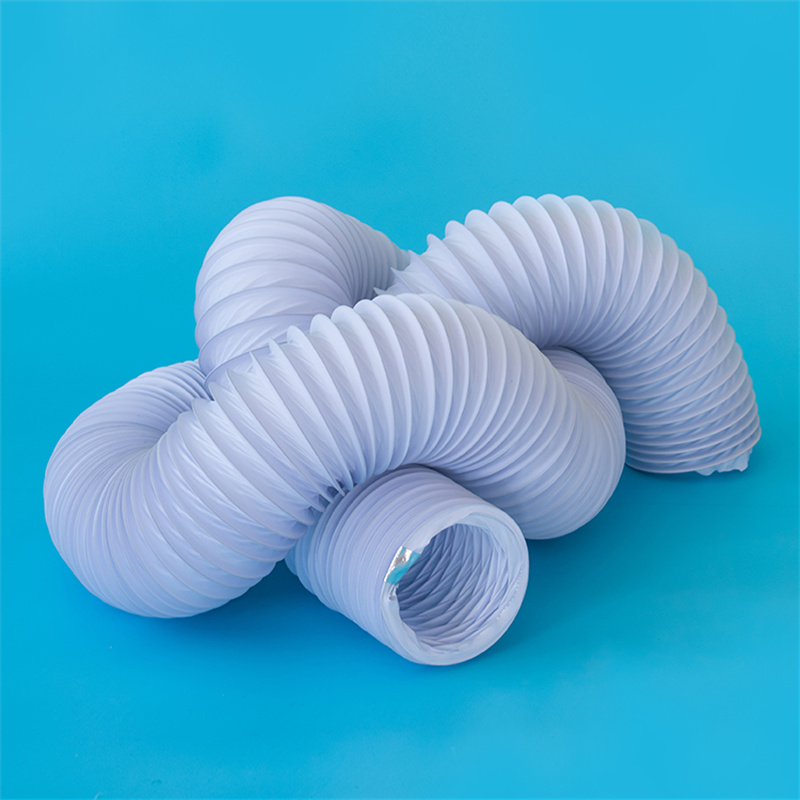

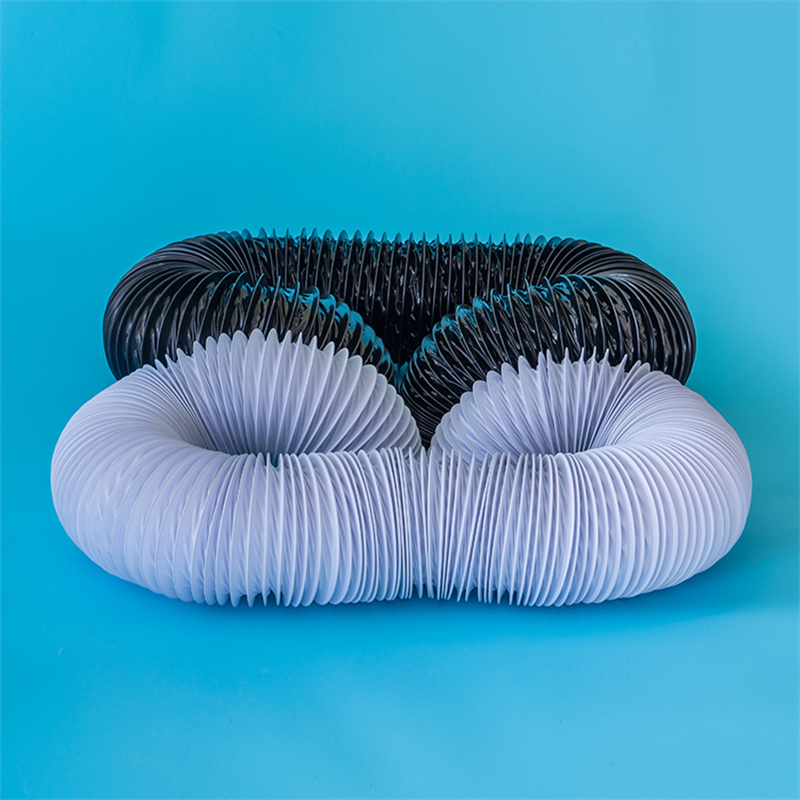

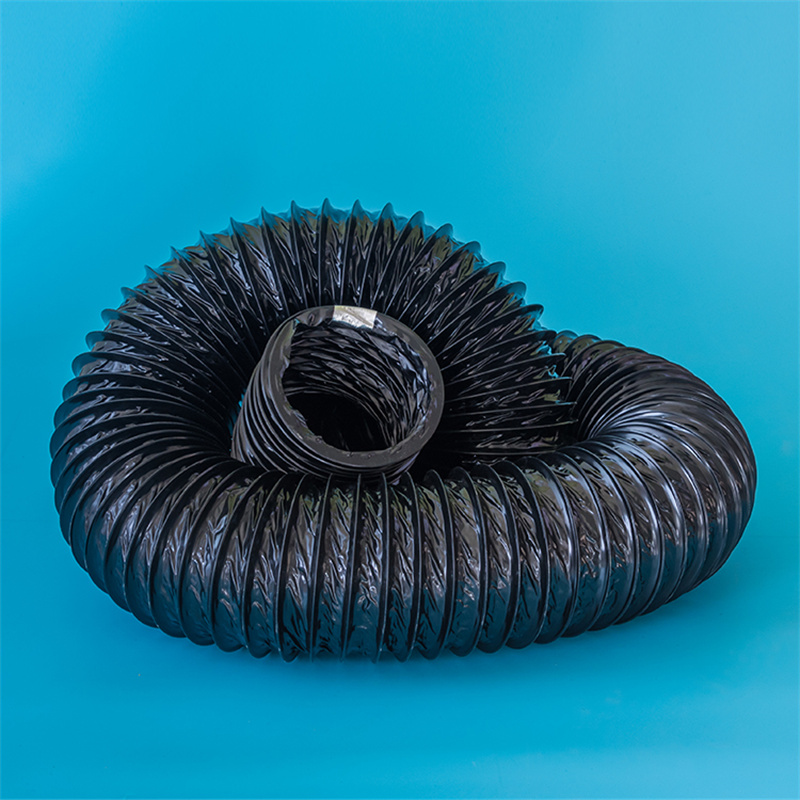

PVC Flexible Duct
PVC软管
|
Product Code
|
XY-106
|
产品编码
|
XY-106
|
|
Construction
|
1 PVC film
|
材料
|
1层PVC
|
|
Color
|
White/Black/Grey
|
颜色
|
白色/黑色/灰色
|
|
AvailableDiameter
|
80mm-650mm
(3"-25")
|
直径范围
|
80mm-650mm
(3"-25")
|
|
Carbon Steel Wire Diameter
|
0.6mm-2.5mm
|
钢丝直径
|
0.6mm-2.5mm
|
|
StandardLength
|
10m(Max)
|
标准长度
|
10m(Max)
|
|
Thickness
|
0.07mm-0.10mm
|
厚度
|
0.07mm-0.10mm
|
|
Fire Resistance
|
Class B1
|
防火等级
|
B1级，难燃
|
|
CompressRatio
|
1:40
|
压缩比
|
1：40
|
|
Temperature Range
|
-20℃/+80℃
|
温度范围
|
-20℃/+80℃
|
|
Operating Pressure
|
3000Pa
|
最大压力
|
3000Pa
|
|
Maximum Air Velocity
|
30m/s
|
最大风速
|
30m/s
|
PVC伸缩软管采用PVC膜复合膜绕帖高弹性螺旋形强韧钢丝制作而成。
拉直后自持性好、风阻小、清洁卫生，遇到高温或火警时，不产生有毒气体，适用于高、中、低压的空调及通风系统，安装便捷。
Made of spiral steel wire laminated with PVC film.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
